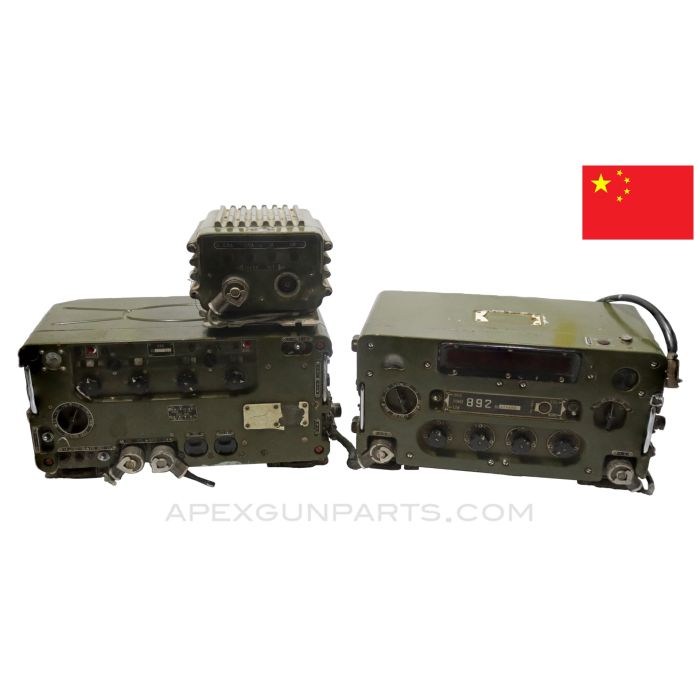

Original Gulf War Bring Back Captured from the Iraqi Army Chinese manufactured Type 889 Transmitter and Type 892 Receiver Boxes with Power Supply recovered from a T69 Chinese Tank in *Good* condition.
Sold as a Set.
Incredible relics to have in your collection!
Includes the transmitter box, receiver box and power supply box (as pictured).
Made of steel and aluminum, painted green.
As we do not have the tools to test electronic equipment, we cannot guarantee the proper function of any of these items.
We were told this was in use by USAF EOD Soldiers at their base HQ.
These are Gulf War trophies, brought home by a returning Soldier, originally Chinese made.
Originally for use in a T69 Chinese tank.
May show signs of surface rust, wear, marring, grime, etc...
Please keep in mind these are large and heavy as a set.
We may have to contact you are the shipping costs...
The below was copied from an Army Radios forum about the Type 889:
It is 20-50 MHz, FM, using 4 rotary decade switches,
the last switch does, 000, 250, 500, and 750 khz.
It is transistorised, has indiviual internal cast modules, discrete components, 10.7mhz IF, about 1980 vintage.
Front panel in English, 28vdc in, has a 28 to 5vdc switching powersupply, (noisy), so I assume the logic is TTL.
It has an OUT of LOCK light on the front panel, so I assume it has a PLL synthesiser.
Has a SQUELCH control, so possibly FM.
HF output:
- 3 and 20 W
- Modulation:
- FM
- Channel spacing:
- 25 kHz
- Frequency control:
- Synthesizer
Main front connector (left)
1 and 2 joined +28vdc in (1 amp on rx, 2 amps on tx low power)
3 and 4 joined ground
Main front connector (right)
1 no connection
2 ground
3 PTT (ground to go into transmit)
4 audio out (will drive a speaker)
5 mic (I think, but not tested)
